Walter Tools

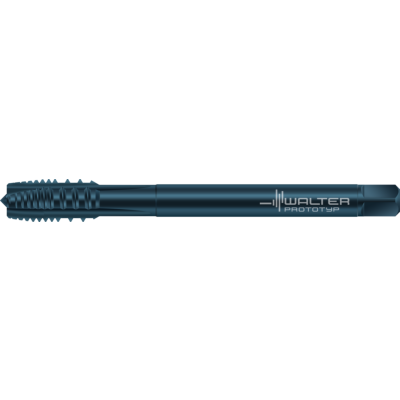

TD217-M20-LZ-WY80FC
HSS-E machine taps
EAN-code: 4063466209932
Universal taps
For thin-walled workpieces
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Connection diameter
d1
16
Functional length
l1
140 mm
Driving square length
l9
15 mm
Usable length
l3
95 mm
Number of grooves
N
4
Tool designation
Designation
TD217-M20-LZ-WY80FC
Premachined hole diameter
PHD
17,5 mm
Tap chamfer length
TCL
11,25 mm
Thread size
DN-P
M 20
Thread length
Lc
30 mm
Thread pitch
P
2,5 mm
Clamping width
12 mm
