Walter Tools

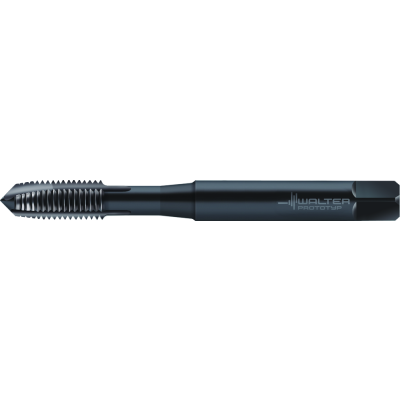

TD217-UNC5/16-C0-WY80FC
HSS-E machine taps
EAN-code: 4063466209024
Universal taps
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Connection diameter
d1
8
Functional length
l1
90 mm
Driving square length
l9
9 mm
Usable length
l3
35 mm
Number of grooves
N
3
Tool designation
Designation
TD217-UNC5/16-C0-WY80FC
Premachined hole diameter
PHD
6,6 mm
Tap chamfer length
TCL
6,35 mm
Thread size
DN
7,938
Thread size
DN-P
UNC 5/16-18
Thread length
Lc
18 mm
Clamping width
6,2 mm
