Walter Tools

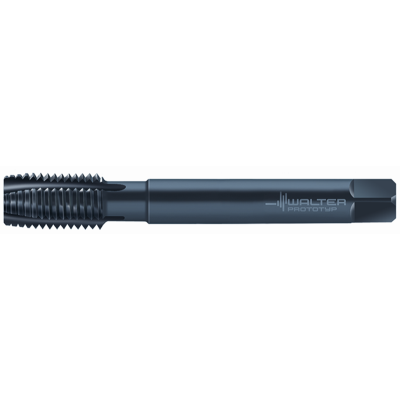

TD217-UNC1.1/4-L0-WY80FC
HSS-E machine taps
EAN-code: 4063466209055
Universal taps
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Connection diameter
d1
22
Functional length
l1
180 mm
Driving square length
l9
21 mm
Usable length
l3
115 mm
Number of grooves
N
4
Tool designation
Designation
TD217-UNC1.1/4-L0-WY80FC
Premachined hole diameter
PHD
28 mm
Tap chamfer length
TCL
16,33 mm
Thread size
DN
31,75
Thread size
DN-P
UNC 1.1/4-7
Thread length
Lc
42 mm
Clamping width
18 mm
Compatible products
Adaptors
