Walter Tools

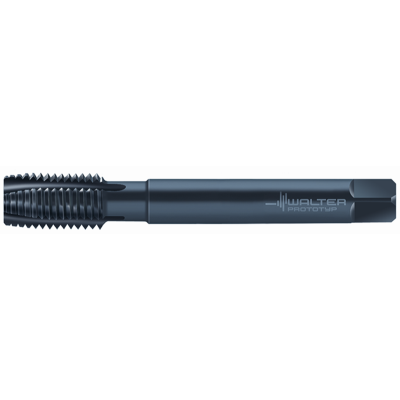

TD217-UNEF1/2-L0-WY80FC
HSS-E machine taps
EAN-code: 4063466209635
Universal taps
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Connection diameter
d1
9
Functional length
l1
100 mm
Driving square length
l9
10 mm
Usable length
l3
73 mm
Number of grooves
N
4
Tool designation
Designation
TD217-UNEF1/2-L0-WY80FC
Premachined hole diameter
PHD
11,8 mm
Tap chamfer length
TCL
4,08 mm
Thread size
DN
12,7
Thread size
DN-P
UNEF 1/2-28
Thread length
Lc
21 mm
Clamping width
7 mm
