Walter Tools

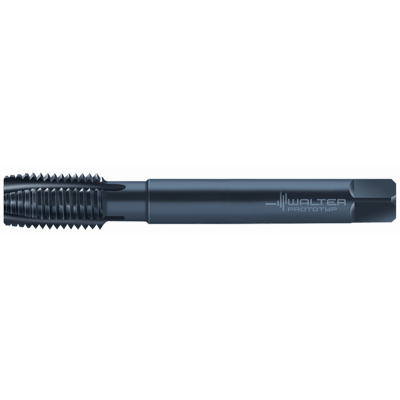

TD217-UNEF7/8-L0-WY80FC
HSS-E machine taps
EAN-code: 4063466209710
Universal taps
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Connection diameter
d1
18
Functional length
l1
125 mm
Driving square length
l9
17 mm
Usable length
l3
78 mm
Number of grooves
N
4
Tool designation
Designation
TD217-UNEF7/8-L0-WY80FC
Premachined hole diameter
PHD
21 mm
Tap chamfer length
TCL
5,72 mm
Thread size
DN
22,225
Thread size
DN-P
UNEF 7/8-20
Thread length
Lc
24 mm
Clamping width
14,5 mm
