Walter Tools

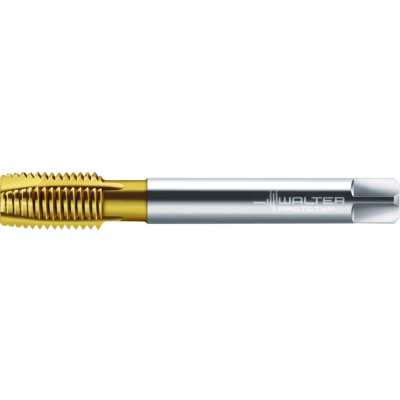

TD217-UNF5/16-L0-WY80AA
HSS-E machine taps
EAN-code: 4063466212277
Universal taps
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Connection diameter
d1
6
Functional length
l1
90 mm
Driving square length
l9
8 mm
Usable length
l3
67 mm
Number of grooves
N
3
Tool designation
Designation
TD217-UNF5/16-L0-WY80AA
Premachined hole diameter
PHD
6,9 mm
Tap chamfer length
TCL
4,76 mm
Thread size
DN
7,938
Thread size
DN-P
UNF 5/16-24
Thread length
Lc
18 mm
Clamping width
4,9 mm
