Walter Tools

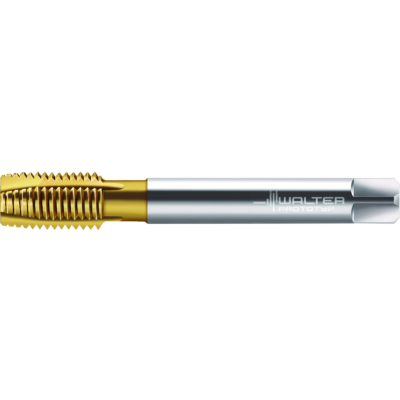

TD217-UNF7/16-L0-WY80AA
HSS-E machine taps
EAN-code: 4063466212284
Universal taps
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Connection diameter
d1
8
Functional length
l1
100 mm
Driving square length
l9
9 mm
Usable length
l3
76 mm
Number of grooves
N
3
Tool designation
Designation
TD217-UNF7/16-L0-WY80AA
Premachined hole diameter
PHD
9,9 mm
Tap chamfer length
TCL
5,72 mm
Thread size
DN
11,113
Thread size
DN-P
UNF 7/16-20
Thread length
Lc
20 mm
Clamping width
6,2 mm
