Walter Tools

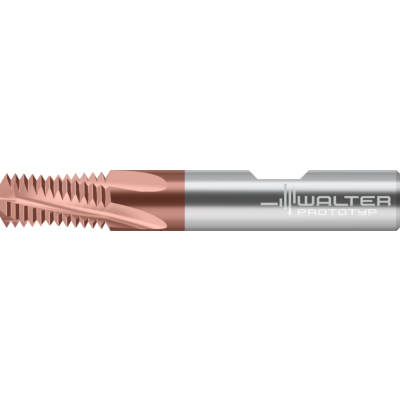

TD610-NPTF1/4-W0C-WB10TU
Solid carbide thread milling cutters
EAN-code: 4063467801869
Universal thread milling cutters
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

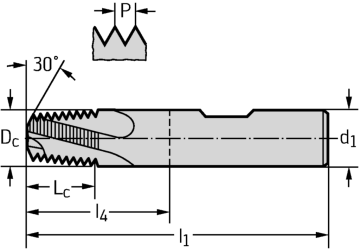

Technical details
Description
Symbol
Value
Maximum cutting depth
Lc
17,27 mm
Cutting edge diameter
Dc
8,92 mm
Connection diameter
d1
10
Thread size
DN
NPTF 1/4-18
Usable length
l3
26 mm
Overall length
l1
66 mm
Functional length
l4
26 mm
Tool designation
Designation
TD610-NPTF1/4-W0C-WB10TU
Threads per inch
18
Number of teeth
Z
4
