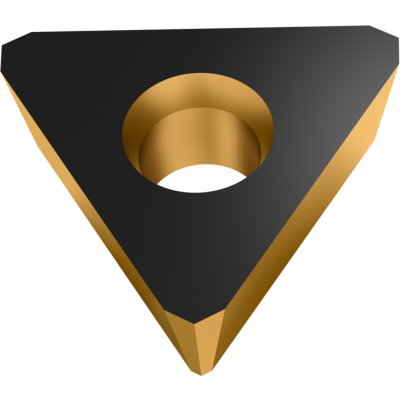

Walter Tools TPAW1604PPN WPP35G
Positive triangular

EAN-code: 4063465527679
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

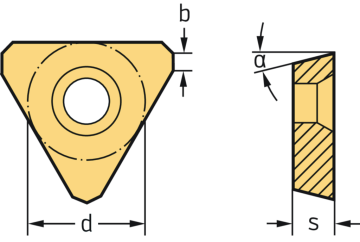

W-MI-DREIKANT-POS-D-01
Enlarge
Description Symbol Value
Clearance angle major
α
11 °
Wiper cutting edge length
b
1,2 mm
Number of cutting edges
3
Diameter of inscribed circle
d
9,52 mm
Number of sides of a tool item or cutting item
NSIDE
1
Designation
TPAW1604PPN WPP35G
Insert thickness
s
4,76 mm
Indexable insert tolerance class
Tolerance class
A
