Walter Tools

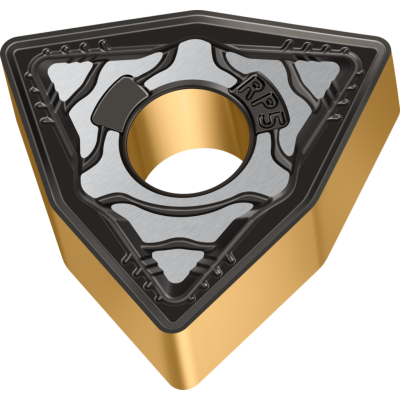

WNMG100616-RP5 WPP10G
Turning Insert – Negative Trigon 80°
NEW 2021
EAN-code: 0683678948
P
M
K
N
S
H
O
VAT 0%
27,20 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Clearance angle major
α
0 °
Depth of cut
ap
1.6–8.0 mm
Number of cutting edges
CEDC
6
Feed rate
f
0.35–0.70 mm
Diameter of inscribed circle
d
15,875 mm
Cutting edge length
l
10,86 mm
Designation
WNMG100616-RP5 WPP10G
Radius
R
1,6 mm
Insert thickness
s
6,35 mm
