Kemmler
502.20.24.0

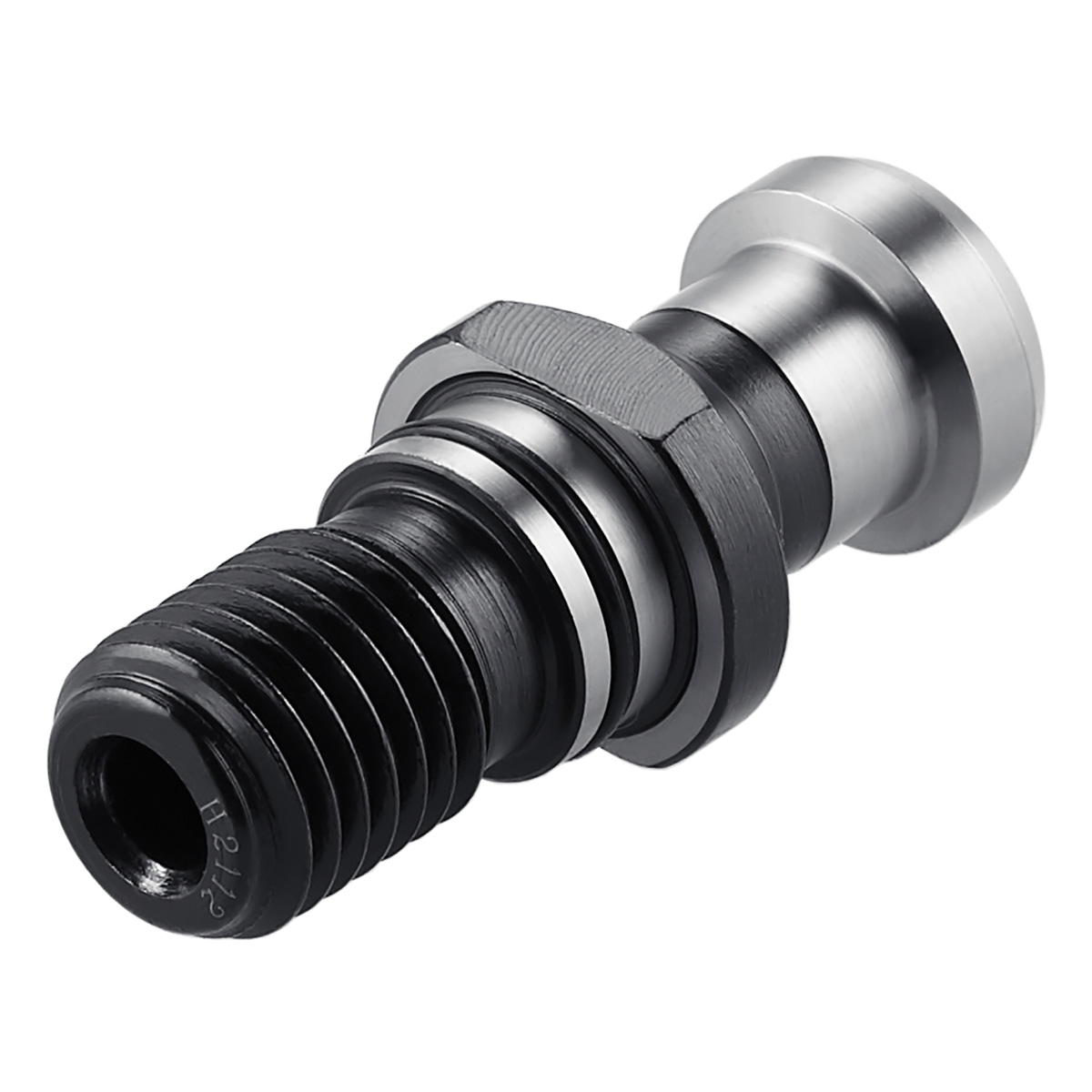

Pull studs DIN 69872 Form A
EAN-code: 4250001077099
with drill through, incl. O-ring
formerly DIN 69872 A
formerly DIN 69872 A
VAT 0%
10,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
- For tools with taper shanks DIN 69871 and JIS B 6339 (MAS-BT)
- In machining centres (machines with automatic tool changers)
- In NC machines (machines without automatic tool changers)
Technical details
Description
Symbol
Value
Standard
ISO 7388-3
Taper size
Kartiokoko
50
Body diameter 1
BD1
28 mm
Body diameter 2
BD2
21 mm
Body half taper angle
BHTA
15°
Pull stud thread size
CRKS
M24
Drive size
DRVS
30
Body length 1
LB1
25 mm
Functional length
LF
34 mm
Torque maximum
TQX
100 Nm Nm
Body diameter 4
BD4
25 mm
Coolant entry diameter
CND
11.5 mm
Shank form
AD
