504.20.24.30.0

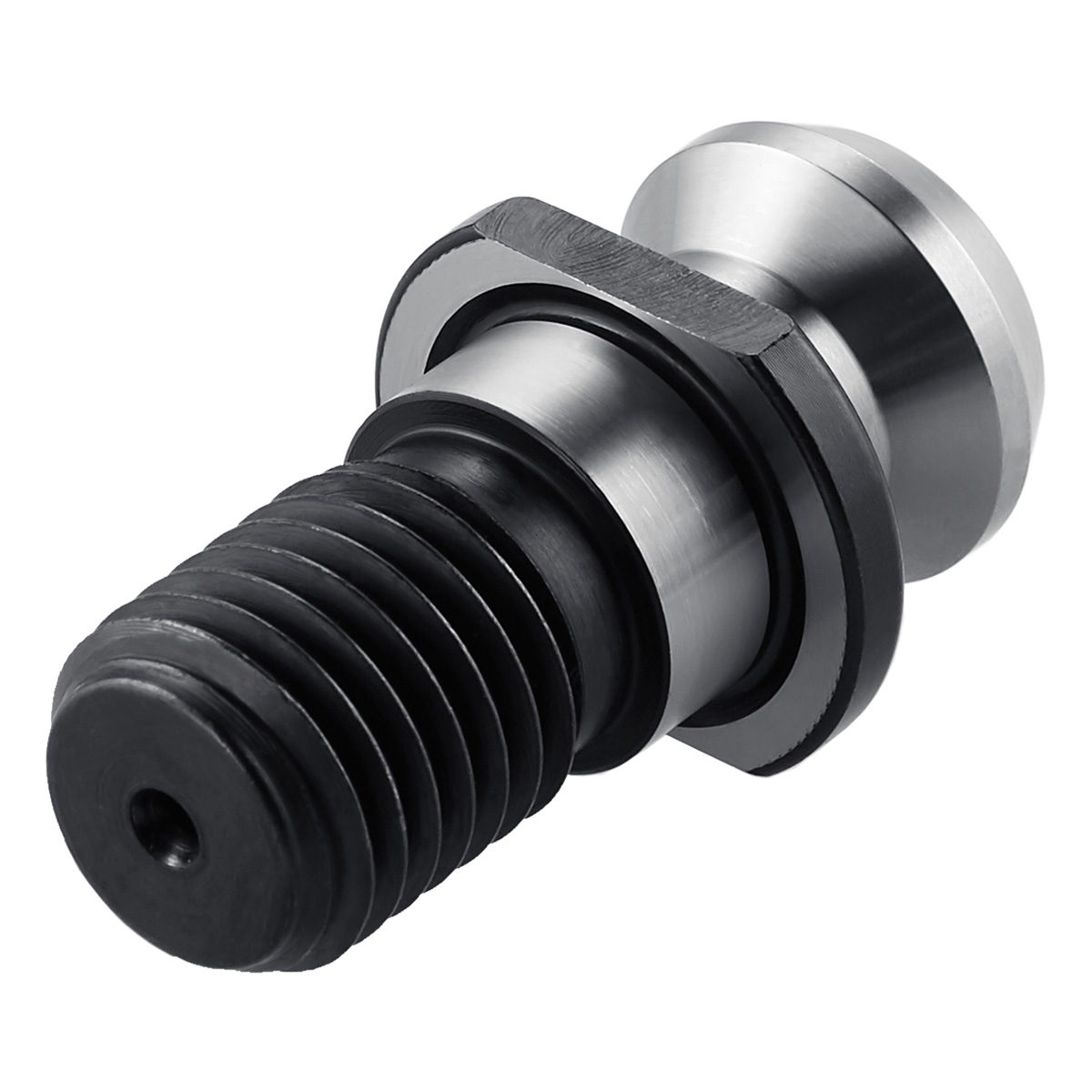

Pull studs ISO 7388
EAN-code: 4250001151119
sealed, incl. O-ring
former norm ISO 7388 Form II B
former norm ISO 7388 Form II B
VAT 0%
14,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
ISO 7388-3 - Retention knobs, shank form UF, without cooling lubricant supply
Application:
- For tools with taper shanks DIN 69871 and JIS B 6339 (MAS-BT)
- In machining centres (machines with automatic tool changers)
- In NC machines (machines without automatic tool changers)

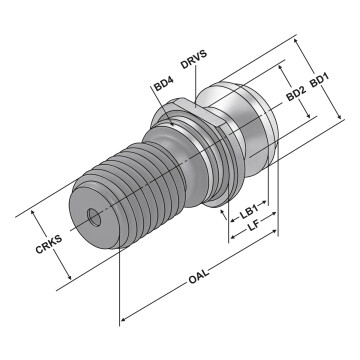

Technical details
Description
Symbol
Value
Standard
ISO 7388-3
Taper size
Kartiokoko
50
Body diameter 1
BD1
29.1 mm
Body diameter 2
BD2
19.600000000000001 mm
Body half taper angle
BHTA
45°
Pull stud thread size
CRKS
M24
Drive size
DRVS
30
Body length 1
LB1
17.95 mm
Functional length
LF
25.55 mm
Torque maximum
TQX
100 Nm Nm
Body diameter 4
BD4
25 mm
Coolant entry diameter
CND
- mm
Shank form
UF
