Products Tool Adaptors Rotating Tool Holders for Machining Centers Toolholders – Walter Tools HSK-A – DIN 69893-1 (ISO 12164-1) Shrink Fit Chucks A560.H A560.H

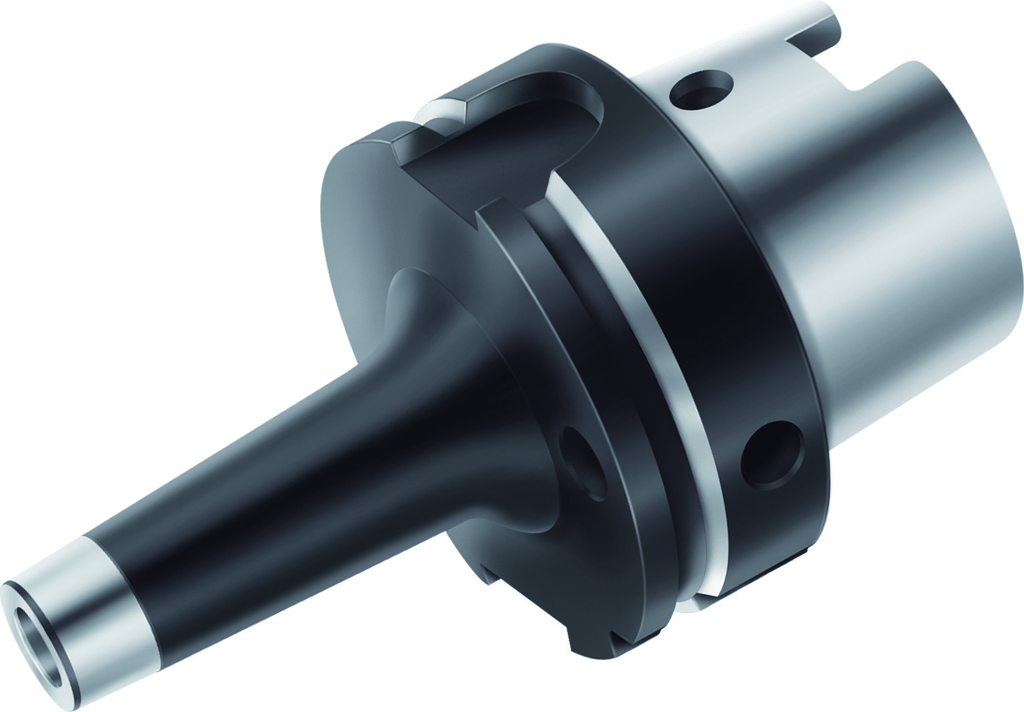

W A AK530 HSK P 01 image

Walter Tools A560.H
DIN 69893-1 A shrink-fit adaptor

imageComingSoon big en US
For tools with parallel shank in accordance with DIN 1835 (h6 or better)
Filters
Filter
Filter

Close
Connection size code, d11
Functional length, l4
    Products/Page
Show products (8)
  • d14 mm
    l16 mm
    l4 mm
    RPMX r/min
  • A560.H63A.05.080
    d14 mm
    14,6
    l16 mm
    45
    l4 mm
    80
    RPMX r/min
    30000
    Checking availability
    252,00 €
  • A560.H63A.06.080
    d14 mm
    16,6
    l16 mm
    45
    l4 mm
    80
    RPMX r/min
    30000
    Checking availability
    252,00 €
  • A560.H63A.08.080
    d14 mm
    20,6
    l16 mm
    45
    l4 mm
    80
    RPMX r/min
    30000
    Checking availability
    252,00 €
  • A560.H63A.10.085
    d14 mm
    25,2
    l16 mm
    50
    l4 mm
    85
    RPMX r/min
    30000
    Checking availability
    252,00 €
  • A560.H63A.12.090
    d14 mm
    29,8
    l16 mm
    55
    l4 mm
    90
    RPMX r/min
    30000
    Checking availability
    270,00 €
  • A560.H63A.16.095
    d14 mm
    35
    l16 mm
    67
    l4 mm
    95
    RPMX r/min
    30000
    Checking availability
    270,00 €
  • A560.H63A.20.100
    d14 mm
    41
    l16 mm
    68
    l4 mm
    100
    RPMX r/min
    30000
    Checking availability
    288,00 €
  • A560.H63A.25.115
    d14 mm
    47,8
    l16 mm
    85
    l4 mm
    115
    RPMX r/min
    30000
    Checking availability
    306,00 €
