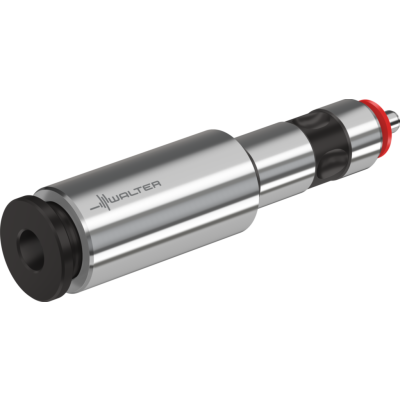

Walter Tools AB735-ER25-R060-027
Synchronised quick-change collet

NEW 2023

EAN-code: 4063465530600

VAT 0% 133,00 €

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

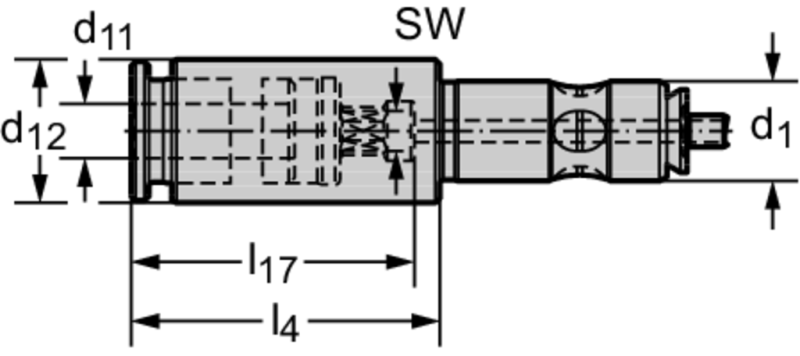

Description Symbol Value

Body diameter

d₁₂

19 mm

Collet size

Connection diameter

d₁

Connection diameter

d₁₁

6 mm

Maximum projection length

l₄

27 mm

Clamping diameter depth

l₁₇

25,5 mm

Tool designation

Designation

AB735-ER25-R060-027

Maximum speed

RPMX

8000 r/min

Wrench size

4,9 mm

Weight

0,07 kg
