Products Tool Adaptors Rotating Tool Holders for Machining Centers Toolholders – Walter Tools HSK-A – DIN 69893-1 (ISO 12164-1) Shell Mill Holders Accure·tec – Vibration Damped AC001-H AC001-H63-B22-210

Walter Tools AC001-H63-B22-210

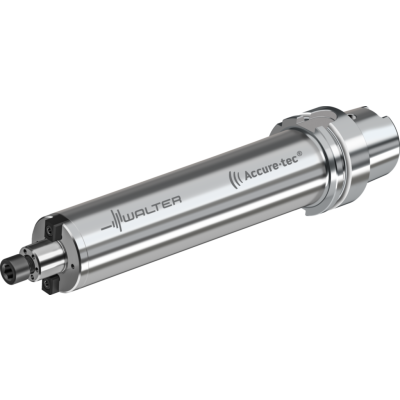

HSK adaptor – Vibration-damped

EAN-code: 0603506851
For milling tools with parallel bore according to DIN 138 With preset vibration damping
VAT 0% 4787,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
W A AC001 HSK D 01
Enlarge
Description Symbol Value
Body diameter
d12
48 mm
Functional length
l4
210 mm
Shank length
l19
19 mm
Tool designation
Designation
AC001-H63-B22-210
Weight
3,54 kg
Connection size code
d1
HSK-A63
Connection size code
d11
22
Compatible products
Accessories
Assembly parts
imageComingSoon big en US
Z_COOLANT_TUBE_HSK
Transfer Unit
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
imageComingSoon big en US
Z_MONTAGE_MESSEN
Installation and measuring
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
