Walter Tools MC230-16.0W4B200C-WK40TF
Pinnfräsar i solid HM

NEW 2021
EAN-kod: 4042446315184
M-dynamic-milling-Icon M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-slot-milling-Icon
D-M-Z4-Icon M-48HRC-Icon M-Spiralw-35-38-Icon M-Zentrumsschneide-Icon Recon-Icon
Lång räckvidd
P
M
K
N
S
H
O
VAT 0% 191,00 €
Kontrollerar lagersaldo
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

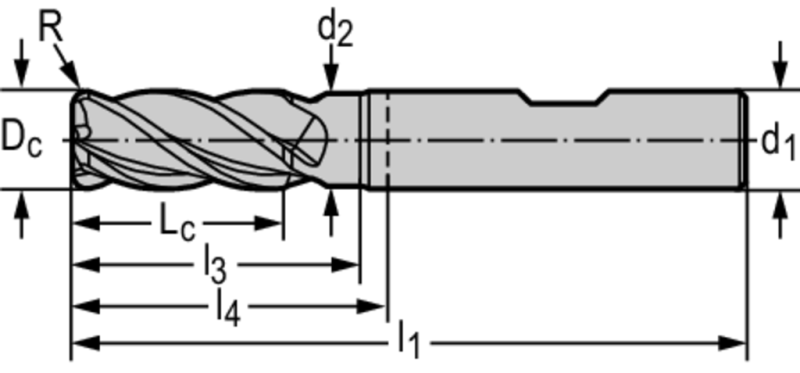

P MR MC230 W 4 B C R D 01
Enlarge
Description Symbol Value
Skärlängd
Lc
32 mm
Verktygsdiameter
Dc
16 mm
Skaftdiameter
d1
16 mm
Kroppsdiameter
d2
15,2 mm
brukbar längd
l3
42 mm
Total längd
l1
92 mm
Funktionell längd
l4
44 mm
Verktygsbeteckning
Beteckning
MC230-16.0W4B200C-WK40TF
Radie
R
2 mm
Antal tänder
Z
4
