Products Cutting Tools Milling End Mills Full Radius End Mills MD480 Advance MD480-A-2-B MD480-03.0A2B-WB10TS

Walter Tools MD480-03.0A2B-WB10TS

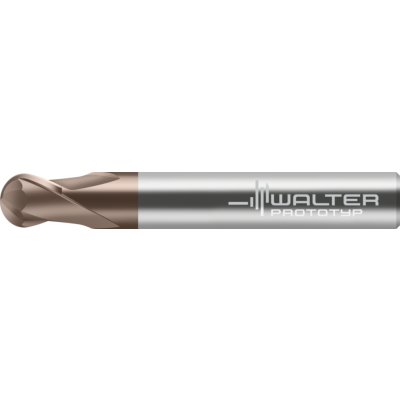

Solid carbide ball-nose copy milling cutters

NEW 2026
EAN-code: 4063467160324
M-copy-milling-4-Icon
D-M-Z2-Icon M-Spiralw-30-Icon Tr-48-63HRC-Icon
P
M
K
N
S
H
O
VAT 0% 82,70 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P-MR-MD480-A-2-B-D-01
Enlarge
Description Symbol Value
Cutting edge length
Lc
4,5 mm
Cutting edge diameter
Dc
3 mm
Connection diameter
d1
6
Overall length
l1
57 mm
Functional length
l4
21 mm
Tool designation
Designation
MD480-03.0A2B-WB10TS
Radius
R
1,5 mm
Number of teeth
Z
2
Compatible products
Adaptors
AB025-J-P-01
AB025-J
MAS-BT JIS B 6339 shrink-fit adaptor
Show variations
AB025-H-P-01
AB025-H
DIN 69893-1 A shrink-fit adaptor
Show variations
AB017-J-P-01
AB017-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB017-S-P-01
AB017-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB025-S-P-01
AB025-S
DIN 69871 AD/B shrink-fit adaptor
Show variations
AB017-H-P-01
AB017-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB019-HSK-MV-AD
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
