Mastercam Mill 3D Constant Z Finishing

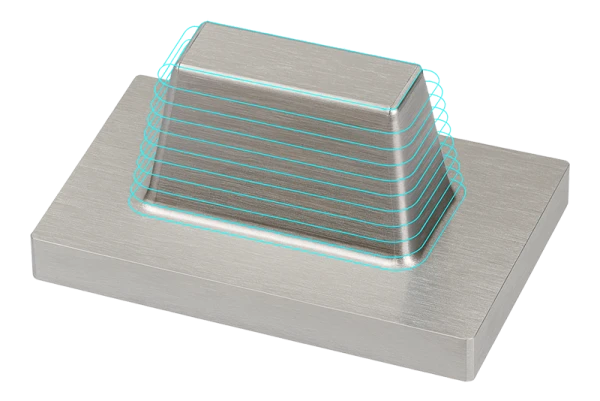

Constant Z Finishing is a toolpath developed for the precise finishing of 3D surfaces. It is based on evenly spaced depth cuts in the Z direction. The method is particularly well suited for steep and vertical surfaces (30–90-degree angles), while also supporting the improvement of shallow areas through additional passes. This makes it a flexible and efficient option for both finishing and semi-finishing complex 3D parts.
Constant Z is a proven and still relevant method for manufacturing molds, tools, and other precision components. It uses stock models and remaining material to optimize the process and reduce unnecessary air cutting. In addition, settings such as critical depths, arc filtering, corner rounding, and tolerances enable controlled machining and excellent surface quality.
Features
- Z-direction depth cuts: Cuts are defined at equal intervals in the Z direction. Users can choose options such as include flats, include contact-point flats, flats only, or contact-point flats only. Manual critical depth cuts are also supported.
- Stock models and remaining material: Machining can be limited to areas where material remains. This reduces air cutting and improves efficiency.
- Additional passes on shallow areas: If the stepover becomes too large, the software automatically adds additional passes, improving surface quality on shallow surfaces.
- Arc filtering and tolerance: Tolerances for arcs and linear interpolation in the toolpath can be adjusted precisely. These settings can be used to fine-tune surface quality and machining smoothness.
- Corner rounding: The settings allow sharp corners to be rounded using a controlled maximum radius, reducing abrupt transitions on the surface.
- Flexible boundaries: The toolpath can be limited to the inside or outside of a boundary, and an automatic offset can be defined. The smallest pockets can also be skipped if their size falls below the specified minimum.
Applications
- Surface finishing: Suitable for the precise finishing of 3D shapes, especially steep walls and vertical surfaces.
Complex geometries: Ideal for shapes that contain both steep and shallow areas, such as molds and free-form parts. - Mold and tool manufacturing: Widely used for finishing molds, castings, and tools where excellent surface finish and high accuracy are required.
Benefits
- Improved surface quality: Evenly spaced Z-depth cuts and controlled additional passes ensure a high-quality surface without overloading.
- Efficient machining: Using stock models and remaining material reduces unnecessary machine motion.
- Flexibility: Users can adjust depth cuts, critical levels, feed rates, and arc filtering as needed.
- Cost efficiency: Consistent cutting engagement reduces tool wear and extends machine life, lowering costs over the long term.
Tips
- Define critical depths carefully: Use the available options—flat surfaces, contact points, and manual values—to ensure an optimal surface finish.
- Use stock models: Avoid air cutting and focus only on the remaining material.
- Adjust arc tolerances: Use the arc filtering settings to control toolpath accuracy and smoothness.
Summary
Mastercam Mill 3D Constant Z Finishing provides a reliable and versatile way to machine 3D surfaces with precision and high quality. Z-direction depth cuts, the use of stock models and remaining material, and control over additional passes make it an excellent option for finishing steep and complex surfaces. When used correctly, it produces a high-quality surface finish, reduces machining time, and optimizes the entire machining process.
